Adjustable upper-track roller assembly for sliding doors and windows.
Wheel structure: Two engineering-plastic guide wheels supported by ball bearings, carried inside a spring-loaded stainless steel housing. Wheel material, bearing grade, spring design and mounting geometry follow the approved drawing.

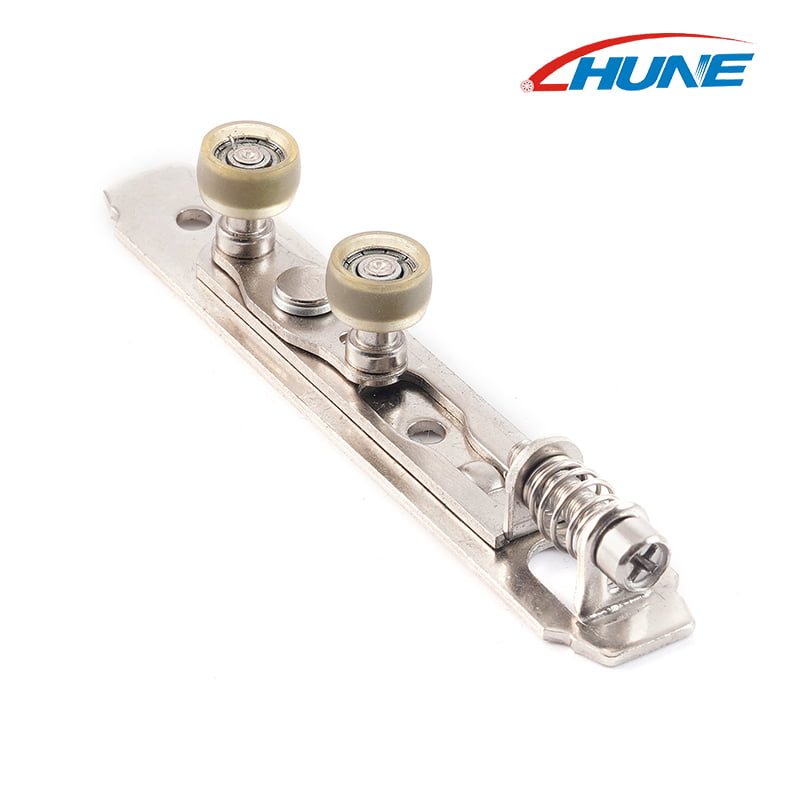

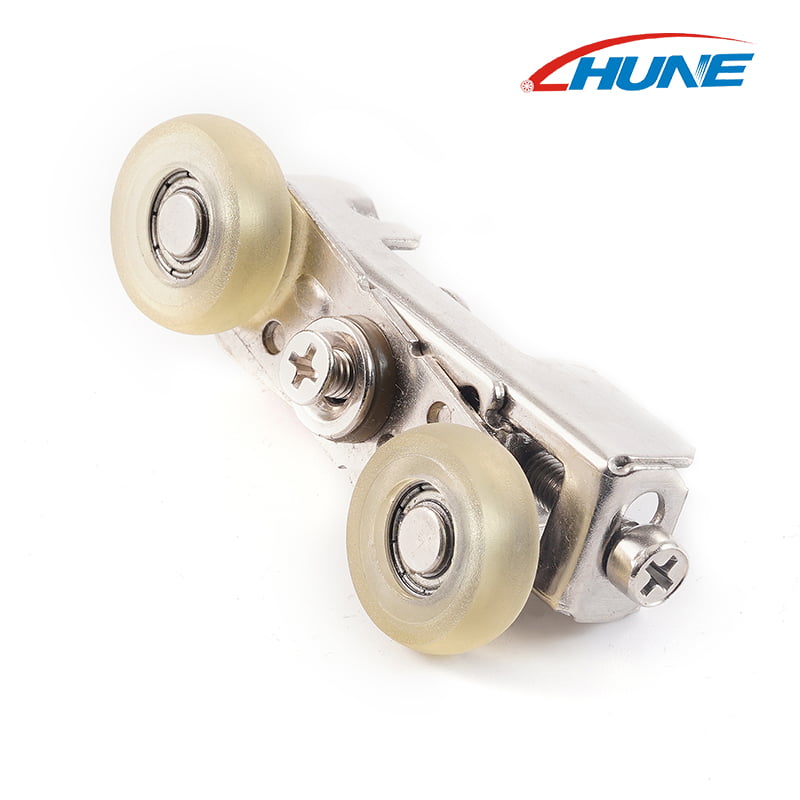

This stainless steel adjustable top roller assembly positions the upper edge of a sliding panel within its guide rail. The two wheels provide separate running points, while the spring mechanism allows the contact position to be corrected after installation.
The specification identifies an SS201 or customized housing and SS304 fasteners. Bearing choices include high-carbon steel, bearing steel, stainless steel or a project-specific arrangement, and the outer wheel can be nylon, POM, PU or another approved compound.
The stated dimensional tolerance is +/-0.1 mm for confirmed features. Spring travel, spring rate, adjustment range and locking method are not supplied as fixed values, so they must be engineered around the track, panel weight and required clearance.
Product Applications
The assembly suits upper-track systems where post-installation alignment and two-point wheel contact are required:
-
Sliding doors: twin wheels run inside the top rail while the spring structure maintains contact with the guide surface.
-
Sliding windows: the adjustable carriage helps the wheel set follow a compatible upper-track profile.
-
Interior door systems: spring adjustment allows the installer to correct small frame and panel differences after fitting.
-
Commercial door hardware: the stainless housing and bearing-supported wheels can be reviewed for repeated interior operation.
-
Replacement top rollers: wheel diameter, spacing, housing size and adjustment range can be matched to an original sample.
-
OEM door and window programmes:
