Product Catalogs and Technical Resources
Explore our complete range of custom injection-molded rollers, sliding rollers, and metal hardware. Download the catalog or request a custom quote.
Product Catalogs
Select a catalog to preview or download. All catalogs are available in PDF format.
U-Groove Bearing Pulley Wheel Size Catalog
Download our U-groove bearing pulley wheel catalog to compare available mould sizes, wheel materials and built-in bearing options. The catalog...
How to Use Our Catalogs
Follow these steps to find the right hardware solutions for your manufacturing or wholesale needs.
Confirm the Bearing Bore
Match the bearing bore with the shaft or mounting pin.
Check the Installation Space
Confirm the maximum wheel diameter and overall width.
Match the Groove Profile
Compare the groove with the cord, cable or rail diameter.
Confirm the Working Conditions
Provide the load, speed, duty cycle and operating environment.
Existing Moulds and Customisation
When an existing mould matches the required wheel diameter and overall width, we may adjust the groove width or groove depth by secondary machining. This can reduce tooling costs and shorten sample preparation.
New tooling is recommended only when the required dimensions or structure cannot be achieved from an existing design.
Existing Mould Options
We compare your required diameter and width with our available moulds before recommending new tooling.
Plastic Material Options
POM, PA6 and PA66 can be selected according to load, wear and working conditions.
Custom Shafts & Brackets
Shafts, pins, spacers and stamped brackets can be manufactured for the customer's assembly.

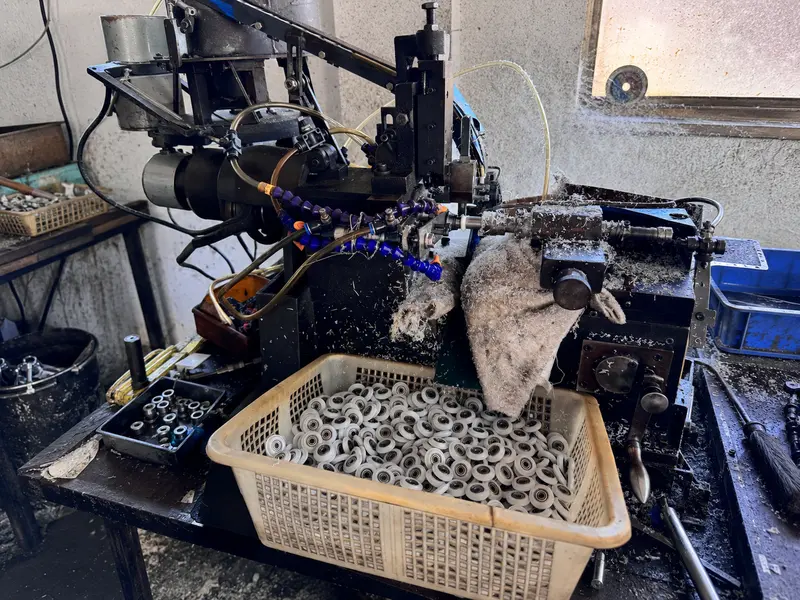

Secondary Groove Machining
Groove width and depth may be machined to match the cord, cable or round rail.
Bearing Configurations
Choose bearing material, bore size and ZZ or 2RS protection for the operating environment.
Complete Pulley Assemblies
Pulley wheels can be supplied with compatible metal and moulded components as an assembled unit.
Request a Catalog or Custom Quote
Can't find what you need? Send us your requirements and our team will get back to you within 24 hours with the right catalog, samples, or a custom quote.
-
Reply Within 24 Hours
Our sales team responds promptly to all B2B inquiries.
-
Custom Solutions
OEM & ODM manufacturing based on your drawings or samples.
-
Free Samples Available
Request product samples before placing your order.
