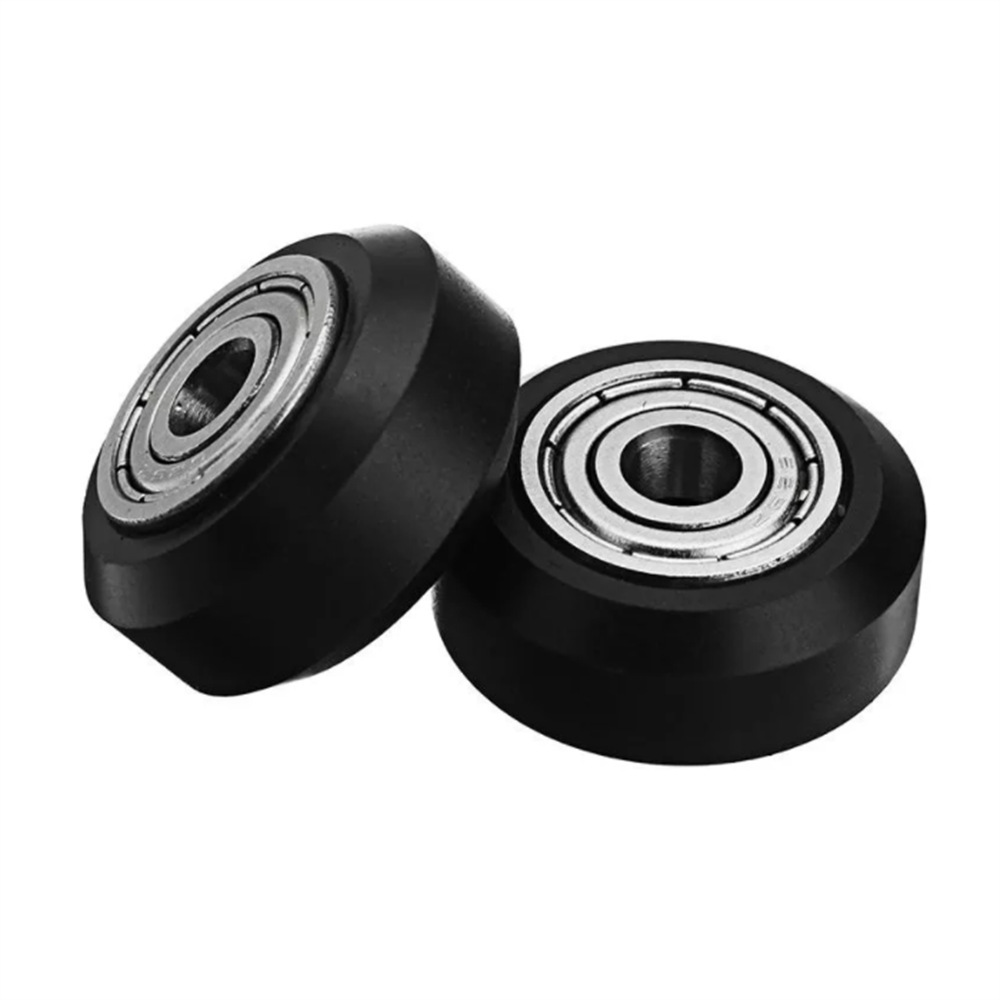

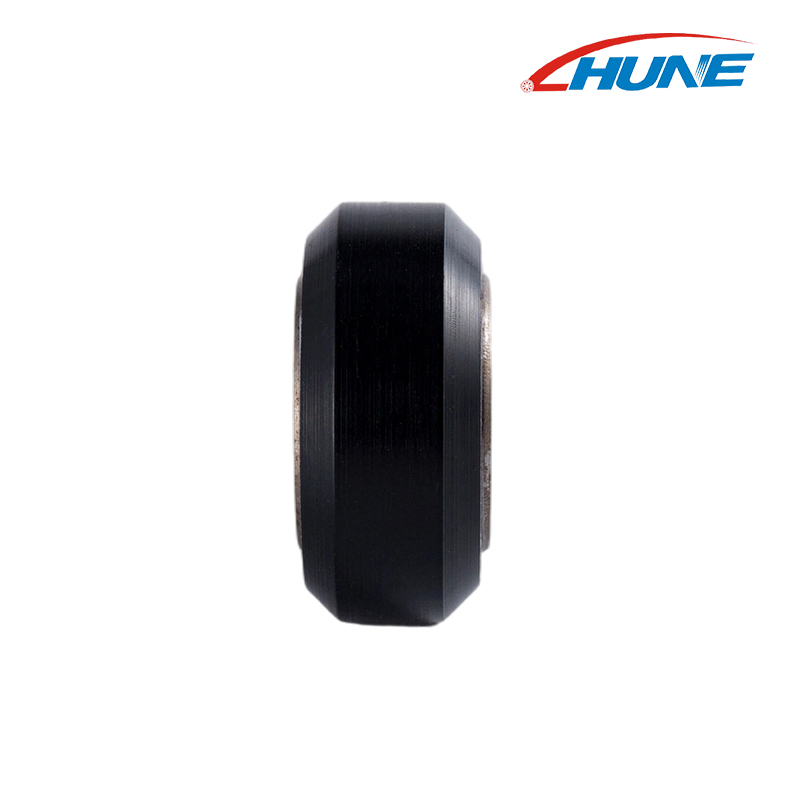

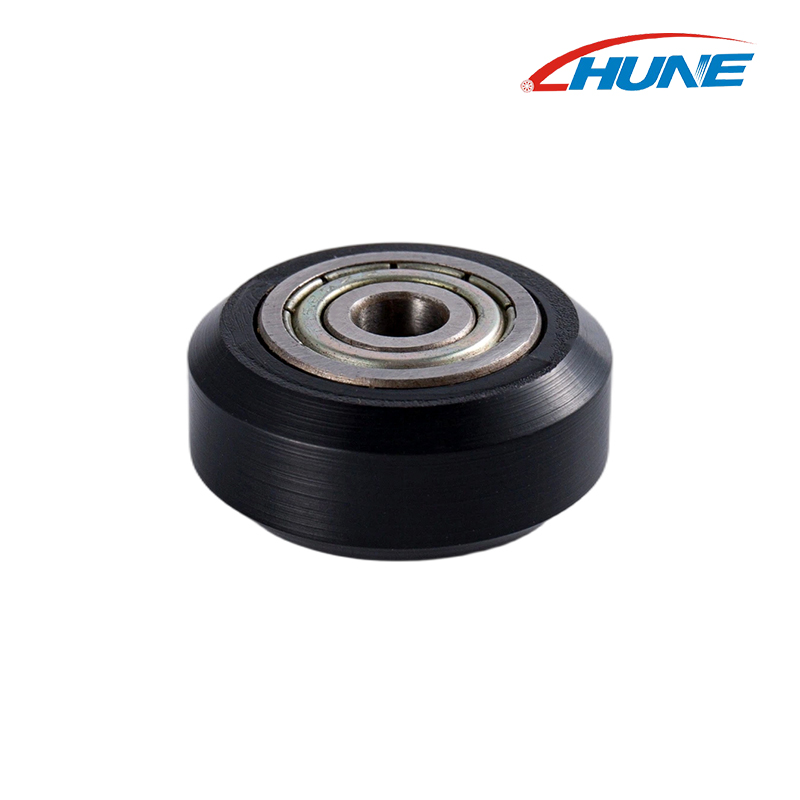

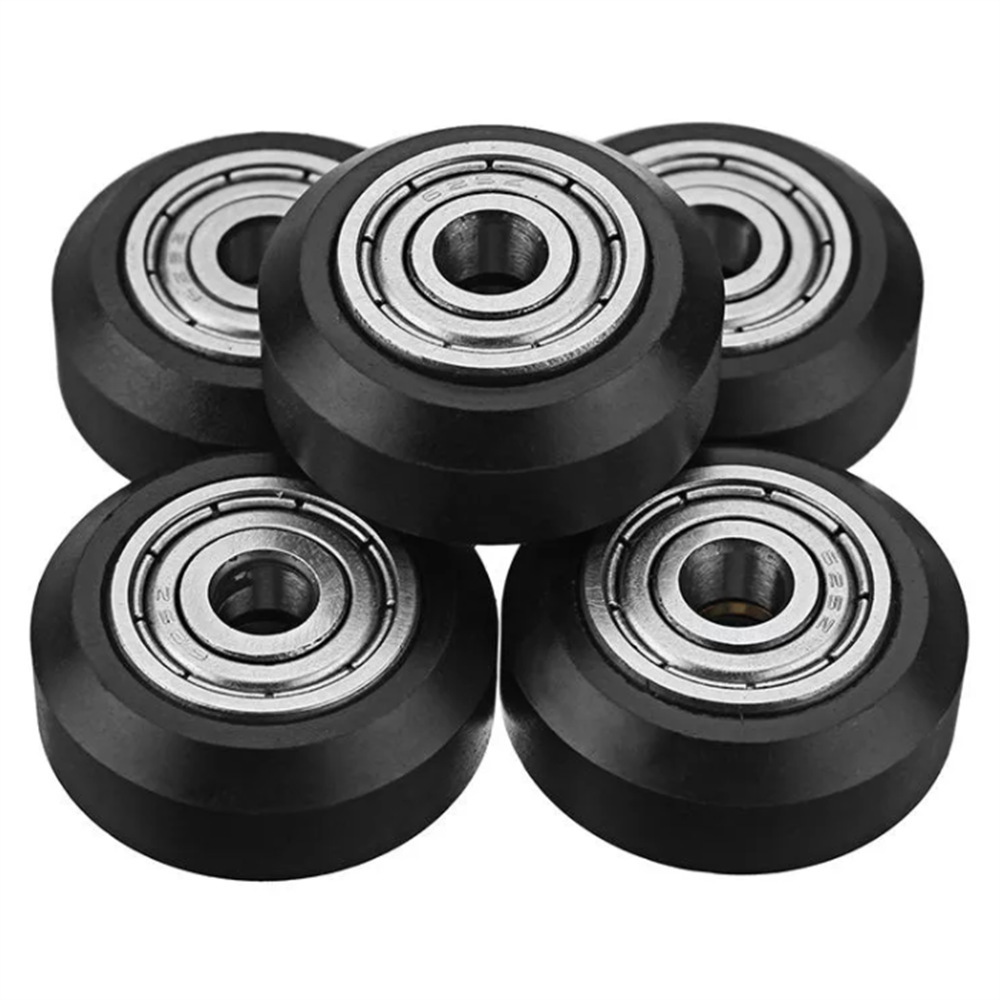

The 24mm Custom V-Slot Wheel with 625 Bearing supports smooth linear movement in 3D printers, CNC machines and compact automation systems. Its V-shaped running surface follows compatible V-slot aluminium profiles and helps keep the moving carriage aligned during operation.

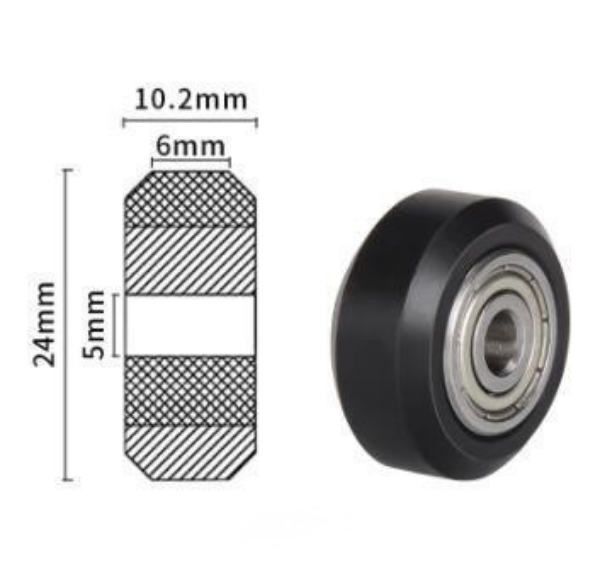

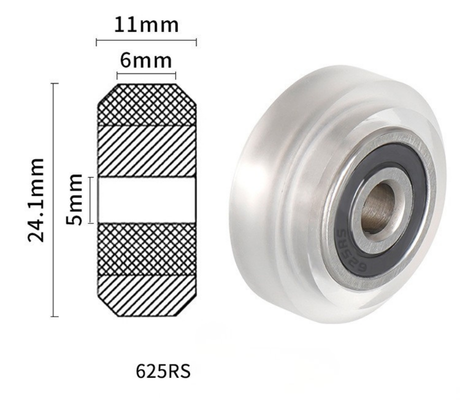

The standard wheel measures approximately 24mm in outside diameter, 11mm in width and 5mm in bore diameter. It can be fitted with 625ZZ, 625RS or 625-2RS bearings according to the required protection and operating conditions.
POM is the common material option for regular 3D printer applications because it offers low friction, good wear resistance and low rolling noise. PEEK and other engineering plastics are available for higher temperature, chemical exposure or special mechanical requirements.
Product Features
V-slot profile: The shaped running surface fits compatible V-slot aluminium extrusion rails.
625 bearing structure: The 5mm bearing bore fits common bolts, shafts and carriage assemblies.
Compact dimensions: The standard wheel size is approximately 24 × 11 × 5mm.
Multiple bearing options: Buyers can select 625ZZ, 625RS or 625-2RS bearings.
Several material choices: POM, PEEK and other engineering plastics are available.
Low-friction movement: The plastic wheel and ball bearing support smooth carriage travel.
Custom manufacturing: Wheel diameter, width, profile, colour and bearing type can be produced according to drawings or samples.
Complete assembly option: Bearings, spacers and other matching components can be supplied according to the project requirements.
Product Advantages
Material selection for different conditions: POM suits standard motion systems, while PEEK supports more demanding temperature and chemical conditions.
Reduced rolling noise: The engineering plastic running surface produces less track noise than many metal wheels.
Stable linear guidance: The V-shaped wheel follows the rail and helps reduce lateral carriage movement.
Lower moving weight: The plastic outer wheel keeps the carriage lighter than many all-metal roller designs.
Easy system integration: The 5mm bore and 625 bearing format match many common 3D printer and CNC carriage structures.
OEM and ODM flexibility: Buyers can customise the material, wheel profile, dimensions, bearing seal and packaging.
Factory assembly control: The wheel and bearing can be produced and assembled as one component, which reduces additional sourcing and assembly work.

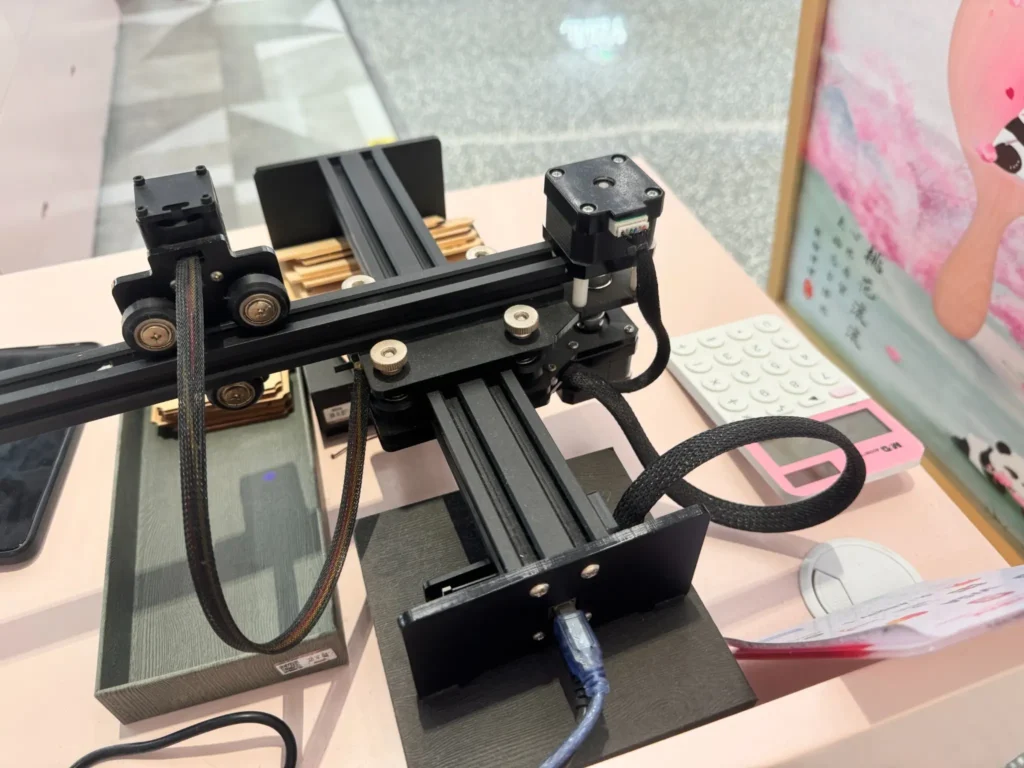

Product Applications
This custom V-slot wheel with bearing is suitable for:
3D printer X-axis, Y-axis and Z-axis carriages
3D printer beds and gantry systems
CNC routers and engraving machines
Laser cutting and laser engraving equipment
V-slot aluminium extrusion systems
Linear-motion guide assemblies
Plotters and drawing machines
Camera sliders
Inspection and measuring equipment
Small automation systems
Custom guide rollers and carriage wheels
Information Required for Selection
Buyers should provide the aluminium profile dimensions, wheel diameter, wheel width, bearing bore, expected load, travel speed, operating temperature and environmental conditions. These details help us select the correct wheel material, V-slot profile and 625 bearing configuration.
