Are you comparing two sliding gate wheels with the same diameter but very different prices? Do you know whether the V-groove fits your track? Can the supplier keep the same bearing, material and dimensions across repeat orders?
These are common questions in the enquiries I review.
Many buyers start with wheel diameter, a claimed load rating and unit price. Those details matter, but they do not define the complete sliding system. A suitable wheel must work with the gate, bearing, shaft, bracket and track.
For company purchasing, the safer question is:
Which sliding roller structure can work consistently in our gate system and remain repeatable in bulk production?
This guide explains how door system manufacturers, hardware importers, OEM sourcing teams and project buyers can assess sliding gate wheels and V-track rollers. It focuses on product matching, sample approval and supply control. It does not provide structural design or site installation instructions.

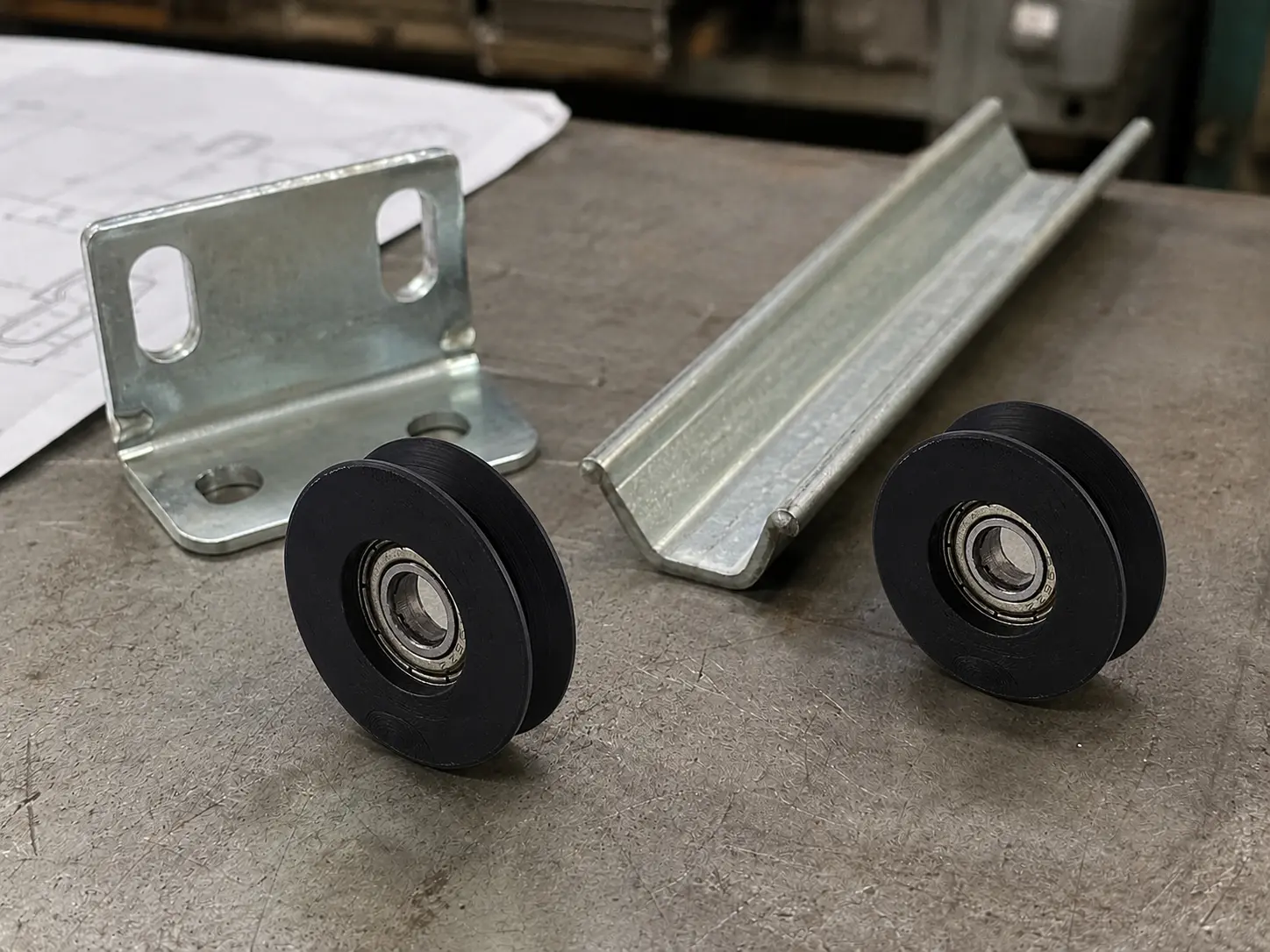

What Are Sliding Gate Wheels and V-Track Rollers?
A sliding gate wheel carries or guides a moving gate. A V-track roller has a V-shaped running groove that contacts a matching raised track. The complete system also includes a bearing or bore, shaft, bracket, gate frame and track.
A typical bottom-running gate assembly contains:
- A wheel with a flat, V-shaped, U-shaped or rounded groove
- One or two bearings, or a plain bore
- A shaft, bolt or pin
- A bracket, housing or internal support plate
- A floor-mounted track
- Guide rollers that control lateral movement
The load-bearing wheel and the top or side guide roller do different jobs. The bottom wheel usually carries the gate weight. A guide roller mainly controls direction. A buyer should not treat them as interchangeable parts even if their outer diameters look similar.
Official gate hardware catalogues show this product variation clearly. Comunello lists V-groove gate wheels with different diameters, bearing arrangements, pins and internal plates. This supports a basic sourcing point: the groove is one feature inside a larger mounting structure.

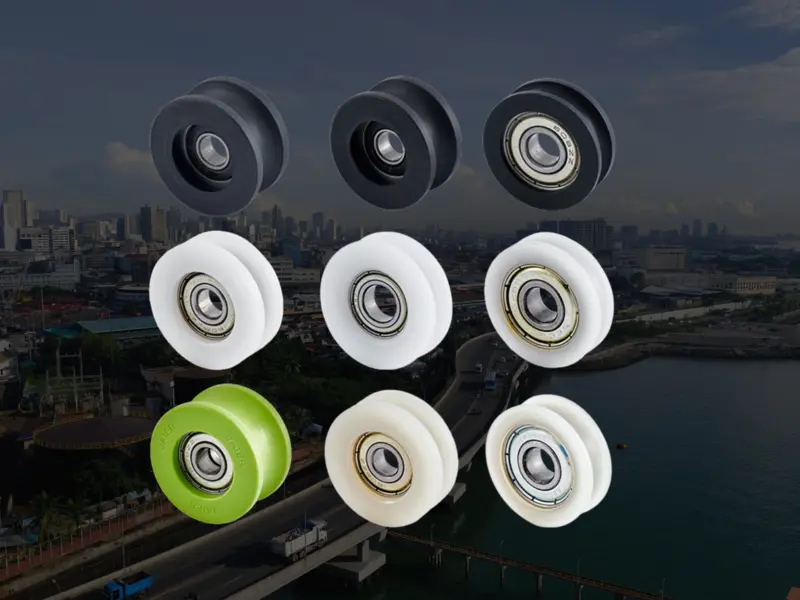

In our factory, I review the wheel as a complete rotating component. I check the bearing, outer material, groove, shaft fit and bracket space before I assess production options.
Why Is Wheel Diameter Not Enough for Sliding Roller Selection?
Wheel diameter cannot confirm track fit, load distribution, bearing type, installation space or service conditions. Two wheels with the same diameter can have different grooves, widths, bearings, shafts and mounting structures.
I often receive a request such as:
Please quote an 80 mm sliding gate wheel for a 500 kg gate.
I still need more information before I can confirm a product. The gate may use two wheels, four wheels or two wheel carriages. The track may use a 90-degree V profile, another angle or a rounded top. The wheel may sit inside the frame or below an external bracket.
Diameter also changes the available space for the bearing and outer wheel material. A larger wheel can support smoother travel over some track joints, but the gate frame may not have enough clearance. A smaller wheel can fit a compact housing, but its bearing, shaft and track contact still need review.
The unit price creates another risk. A low sample price can hide differences in:
- Bearing source and seal
- Steel grade or plastic grade
- Wheel concentricity
- Groove machining
- Heat treatment or surface finish
- Shaft tolerance
- Bracket thickness
- Inspection level
- Packaging protection
A company should compare approved specifications, not product photos alone.
| Comparison point | What it tells the buyer | What it does not confirm |
|---|---|---|
| Wheel diameter | Overall wheel size | Track contact and bracket fit |
| Claimed load | Supplier’s stated reference | Real load distribution in the gate |
| Bearing number | Bearing boundary dimensions | Wheel, shaft and bracket strength |
| Material name | General material family | Exact grade and batch consistency |
| Unit price | Initial purchase cost | Sampling, failure and replacement cost |
What Information Should a B2B Buyer Provide First?
A B2B buyer should provide the gate weight, gate size, wheel quantity, track profile, mounting structure, operating conditions and purchasing volume before asking a supplier to confirm a sliding roller.
I use the following checklist for a first review:
| Information group | Details to provide | Why I need it |
|---|---|---|
| Gate | Weight, width, height and frame type | Defines the basic system load and space |
| Wheel arrangement | Quantity and position of load-bearing wheels | Shows how the gate may distribute its weight |
| Movement | Travel distance, speed and cycles per day | Helps review bearing and wear conditions |
| Track | Cross-section, angle, width, height and material | Confirms groove contact |
| Installation | Shaft, bracket, housing and available space | Confirms assembly fit |
| Environment | Indoor, outdoor, rain, dust, salt and temperature | Guides material, seal and finish review |
| Performance | Noise, smoothness and expected service life | Sets sample and test targets |
| Quantity | Samples, first order and annual demand | Guides existing mould or new-tooling decisions |
| Commercial | Target price and delivery date | Helps compare workable production routes |
Send a drawing if you have one. A cross-section of the wheel and track gives much more value than a front-view photo.
If you do not have a complete drawing, send:
- Photos from several angles
- A physical wheel sample
- A track sample
- A shaft or bracket sample
- Manual dimensions
- Gate installation photos
- A short operating video
- A description of the current problem
We can check manufacturing feasibility from these items. The buyer’s responsible design or installation team should approve the complete gate system.

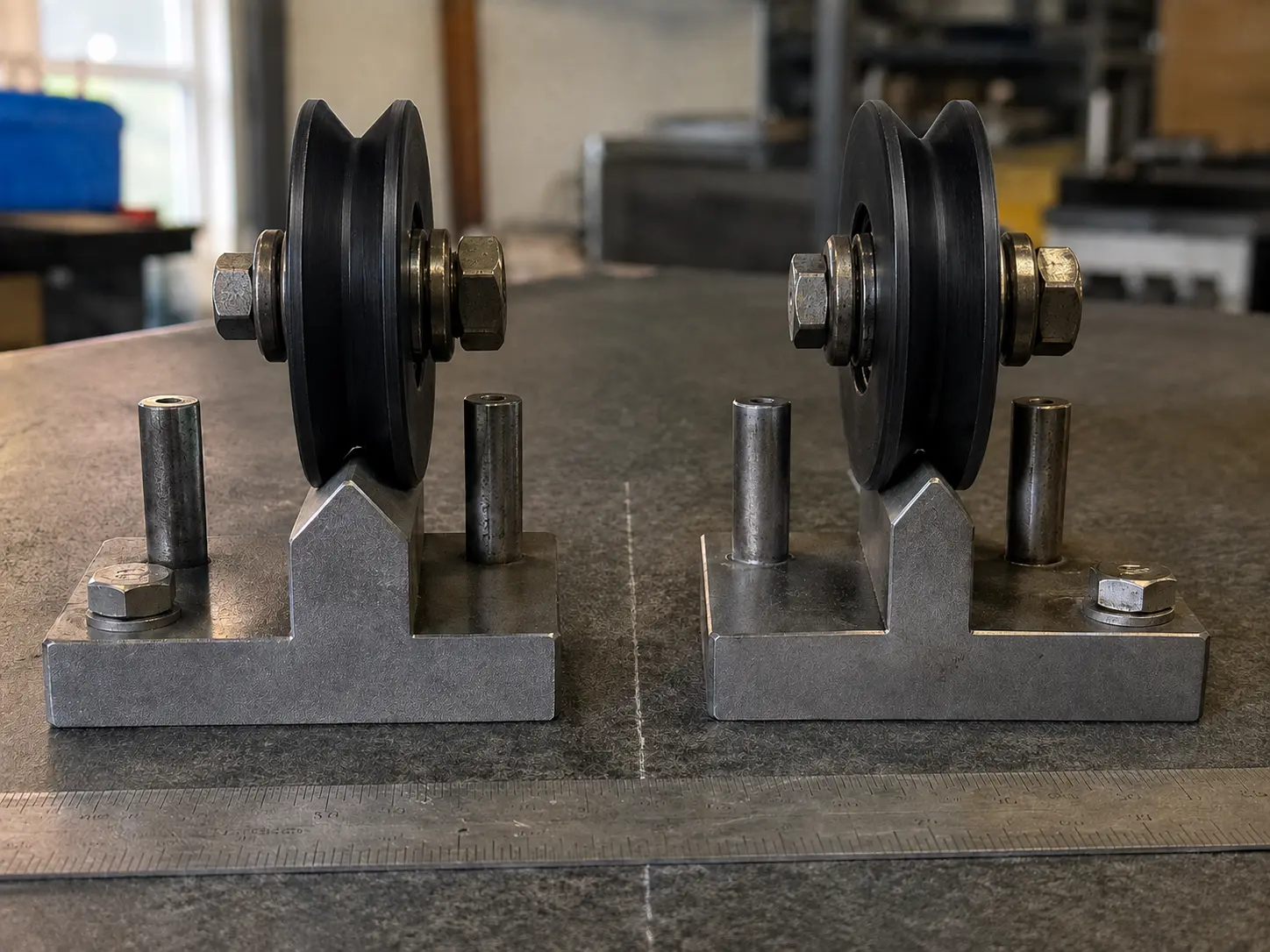

How Should V-Groove Wheels for Sliding Gates Match the Track?
V-groove wheels for sliding gates should match the track angle, track width, track height and intended contact position. A wheel that rests on the track can still have poor contact.
The words “V-groove” do not define one universal profile. Buyers should compare the actual cross-sections.
The main dimensions include:
- Groove angle
- Groove opening width
- Groove depth
- Groove bottom shape
- Wheel width
- Track angle
- Track top width
- Track height
- Required side clearance
Correct contact should follow the approved wheel and track design. If the angle differs, the wheel may contact only its groove edges or sit too low on the track. This can increase noise, rolling resistance and local wear.
Alignment also matters. A correct wheel and track pair can still run badly if the shaft or bracket places the wheel at an angle. I can review the wheel and hardware dimensions from a production view, but site alignment should be checked by the gate-system team.
| Track and groove condition | Possible result | Buyer action |
|---|---|---|
| Angles match and contact is centred | More stable running contact | Confirm with an installed sample |
| Wheel angle is too narrow | Edge contact and local wear | Compare cross-section drawings |
| Wheel angle is too wide | Poor seating and side movement | Check track top and groove depth |
| Groove is too shallow | Wheel may ride high | Review clearance and retention |
| Groove is too deep | Track may contact the groove bottom | Check cross-section and debris space |
| Bracket is misaligned | Side load and uneven wear | Check the complete assembly |
How Does Gate Weight Affect V-Track Roller Selection?
Gate weight is a starting input, but it does not produce a safe wheel choice by itself. Buyers must also confirm wheel quantity, load distribution, impact, track condition and mounting structure.
A simple calculation may divide the total gate weight by the number of wheels. Real systems may not divide the load equally.
Load can shift because of:
- Gate-frame deflection
- Uneven track installation
- Wheel position
- Bracket adjustment
- Ground movement
- Debris on the track
- Starting and stopping force
- Impact at the end position
- Wind acting on a large gate panel
Product catalogues also show why buyers should avoid a diameter-only rule. The official Comunello catalogue lists wheels with similar diameters but different bearing counts, pins, internal supports and stated capacities. The assembly changes the product specification.
Deep groove ball bearings can support radial load and some axial load in both directions, the general bearing ability does not establish the capacity of a finished gate wheel. The outer wheel, shaft, bracket and track can become the limiting parts.
For a company project, ask the responsible technical team to define:
| Load input | Question to answer |
|---|---|
| Total moving weight | What is the verified gate weight? |
| Wheel quantity | How many wheels carry the load? |
| Distribution | Can one wheel carry more than the others? |
| Force direction | Is the main force radial, lateral or combined? |
| Impact | Does the gate stop sharply or strike an end stop? |
| Duty cycle | How many cycles must the system complete? |
| Test method | What load, travel and cycle count must the sample pass? |
I do not give a universal statement such as “one 80 mm wheel carries every 500 kg gate”. I can provide the component specification and production sample. The buyer should validate the complete gate under defined working conditions.

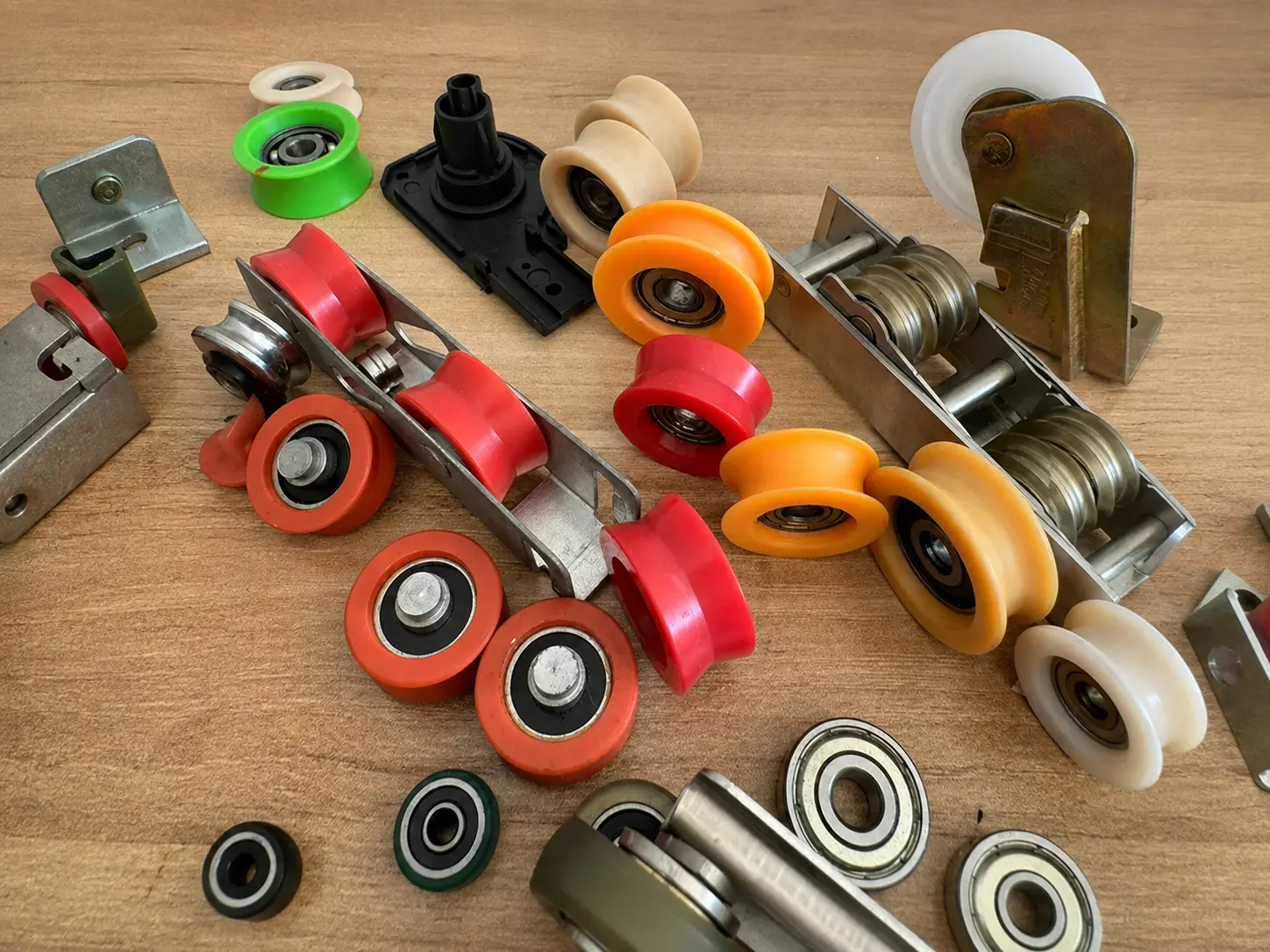

Which Wheel Material Should a Company Choose?
A company should choose wheel material by load, noise, track wear, corrosion, temperature, weather exposure and cost. Metal, nylon, plastic-coated and rubber-coated wheels serve different priorities.
No material gives the highest load, lowest noise, longest life, lowest track wear and lowest price at the same time.
| Wheel option | Reasons to assess it | Points to confirm |
|---|---|---|
| Steel wheel | High stiffness and established use in many gate systems | Noise, corrosion, lubrication and track wear |
| Stainless steel wheel | Better corrosion resistance with a suitable grade | Cost, noise, track contact and bearing material |
| Cast iron wheel | Stiff wheel body and wear resistance in suitable applications | Corrosion, noise, weight and bore lubrication |
| Nylon wheel | Lower noise and lower weight than many metal wheels | Moisture absorption, temperature, grade and deformation |
| POM-coated bearing wheel | Smooth surface, stable dimensions and quieter contact | Wall thickness, impact, UV, temperature and load |
| Rubber-coated wheel | Softer contact, grip and lower contact noise | Hardness, deformation, bonding and rolling resistance |
Industry manufacturer guides show this trade-off in industrial wheel families. Rubber wheels are associated with quieter operation and floor protection, while cast iron wheels focus on hardness, wear resistance and low rolling resistance on even floors. These are general material characteristics. A gate buyer must still validate the chosen wheel on the real track.
From our production side, I also ask about material grade. “Nylon” and “POM” are families, not complete specifications. Additives, colour, recycled content and moulding control can change the finished wheel.
For repeat orders, the approved specification should state the exact agreed grade or performance requirement. A supplier should not change material without buyer approval.

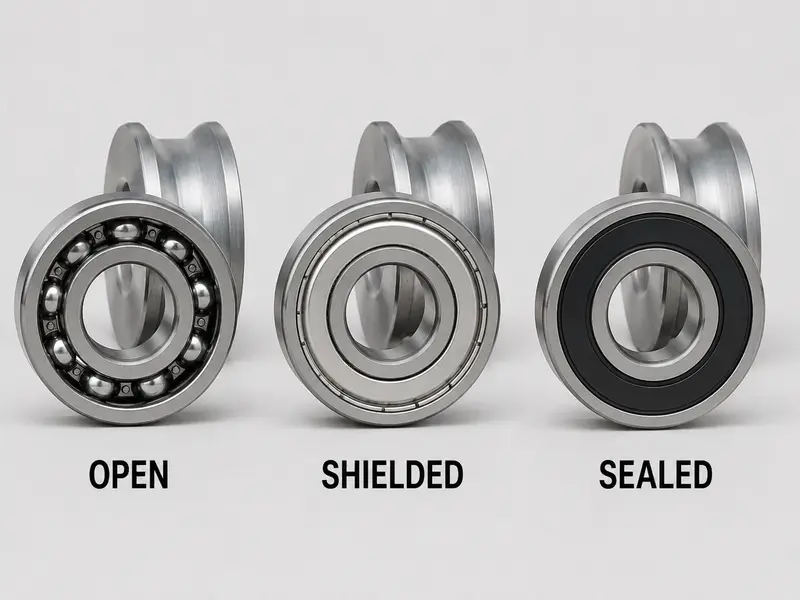

Which Bearing Should a Sliding Gate Wheel Use?
The bearing should match the load direction, speed, contamination, moisture, shaft fit and maintenance plan. The bearing number alone cannot define the complete sliding gate wheel.
A gate wheel may use:
- A plain bore
- A bush
- One ball bearing
- Two ball bearings
- A sealed bearing
- A shielded bearing
- Another bearing structure approved by the gate-system designer
One bearing can keep the structure compact. Two bearings may improve support in some wheel and shaft arrangements. That does not mean two bearings always double the finished wheel capacity. The spacing, shaft, wheel body and bracket also affect the result.
Outdoor use often brings water, dust and grit. A sealed bearing may help retain grease and exclude contaminants. SKF explains that seal choice affects grease retention, contaminant exclusion and bearing service life in its guidance on sealed deep groove ball bearings.
Buyers should still confirm the supplier’s exact suffix and construction. Labels such as RS, 2RS, Z and ZZ can refer to different closure designs across manufacturers.
| Bearing point | What to specify |
|---|---|
| Type | Plain bore, bush, one bearing or two bearings |
| Dimensions | Bore, outside diameter and width |
| Closure | Open, shielded or sealed |
| Grease | Standard or project-specific requirement |
| Shaft fit | Shaft diameter, tolerance and retention |
| Environment | Water, dust, salt, chemicals and temperature |
| Quality level | Approved supplier, sample or agreed standard |
A sealed bearing protects the bearing interior. It does not protect an unsuitable shaft, exposed bracket or poor track contact.
What Can Cause Noise, Wear and Unstable Movement?
Noise and unstable movement often come from the complete wheel-track system. Common causes include profile mismatch, poor alignment, uneven load, contamination, unsuitable material and inconsistent wheel geometry.
Buyers sometimes replace the bearing first because the wheel sounds rough. The bearing may be the cause, but several other parts can create the same complaint.
| Reported problem | Possible product or system cause | What to inspect |
|---|---|---|
| Repeated noise | Hard wheel-track contact, rough track or damaged bearing | Wheel surface, track and bearing rotation |
| Gate pulls sideways | Misaligned wheel, bracket or track | Installed wheel position and guide system |
| Uneven groove wear | Wrong profile or uneven load | Wheel-track cross-section and load distribution |
| High starting force | Seal drag, deformation, dirt or poor alignment | Bearing, wheel, track and bracket |
| Wheel wobble | Poor concentricity, shaft clearance or bearing fit | Wheel runout and complete assembly |
| Early corrosion | Wrong metal grade, coating damage or water exposure | Bearing, shaft, bracket and fasteners |
| Frequent replacement | Wrong material, load or duty assumption | Approved specification and application test |
From a manufacturing view, I focus on concentricity, groove dimensions, bearing fit, shaft fit and bracket clearance. A wheel can rotate smoothly in a hand test but fail after installation because the track or bracket changes the contact.
This is why the final sample should run in the buyer’s actual gate assembly or a representative test fixture.

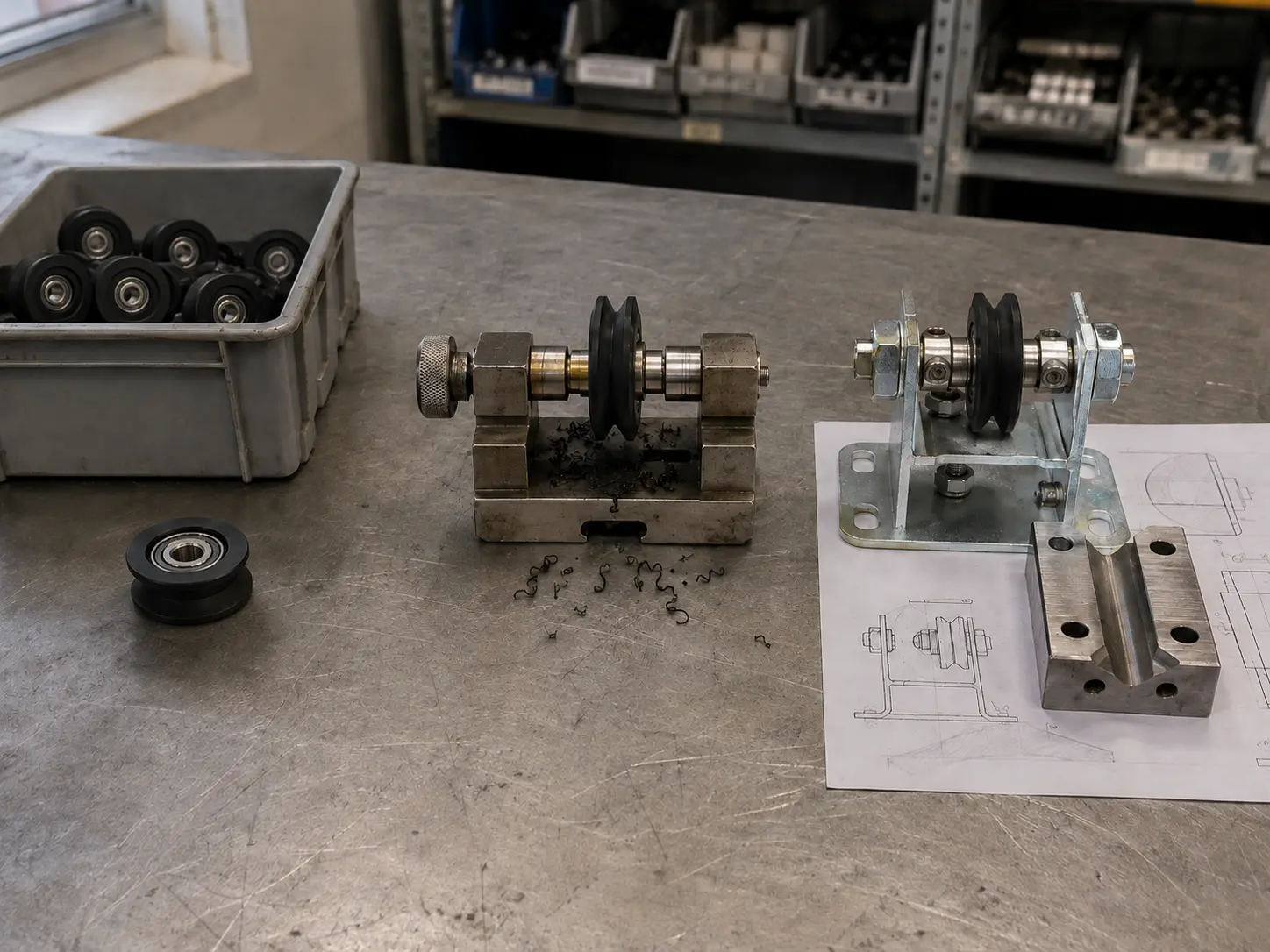

Can an Existing Sliding Roller Replace a Custom Wheel?
An existing sliding roller can replace a custom wheel if its groove, dimensions, bearing, shaft and mounting structure meet the approved application. A similar appearance is not enough.
We keep accumulated moulds for different plastic-coated bearing rollers and sliding hardware parts. I first compare a new enquiry with existing products because this route can reduce tooling cost and sample time.
There are three practical sourcing routes:
| Project condition | Existing wheel | Secondary machining | New mould or assembly |
|---|---|---|---|
| Dimensions and profile match | Best first option | Not required | Not required |
| Existing wheel is close | Check all fitting limits | May adjust groove or width | Compare against annual demand |
| Unique V-groove | Usually unsuitable | Limited by current wheel structure | Often the consistent route |
| Small trial order | Lower initial cost if approved | Can avoid tooling | Tooling may not suit the volume |
| Stable repeat demand | Useful after sample approval | Check repeatability | Dedicated tooling may improve control |
| Wheel, shaft and bracket needed | Use only if the assembly matches | Limited changes | Complete OEM assembly may fit better |
Secondary machining can solve a small dimensional difference in some wheels. It cannot correct every groove, bearing or structural difference. Machining also adds its own tolerance, surface and cost points.
You can review our sliding rollers with bearing to compare standard structures before starting a new mould.
When Do B2B Buyers Need Custom V-Track Rollers?
B2B buyers need custom V-track rollers when catalogue wheels cannot meet the approved groove, material, bearing, shaft, bracket, colour or supply requirements.
Custom work may include:
- A new V-groove profile
- A special wheel diameter or width
- One or two bearings
- A specified bearing seal
- A plastic-coated or rubber-coated outer layer
- A custom shaft or pin
- A stamped bracket or internal plate
- A surface finish or corrosion requirement
- A private-label package
- Batch marking and inspection records
The need for a new mould depends on technical fit and expected demand. A low-volume project may use an approved existing wheel. A stable programme may justify dedicated tooling because the buyer gains a controlled drawing, sample and repeat-production route.
Before we start an OEM project, I want both sides to confirm:
- The drawing or reference sample
- Critical dimensions and tolerances
- Bearing specification
- Wheel material and colour
- Shaft and bracket structure
- Sample quantity
- Test responsibility and acceptance criteria
- Tool ownership and storage
- First-order and annual quantity
- Packaging and change control
Our OEM and ODM process explains how drawing review, mould evaluation, sampling and bulk approval connect.
What Does a Real Gate-Wheel Enquiry Teach Buyers?
A real enquiry shows that wheel diameter and gate weight rarely provide enough information. The track and mounting structure often decide whether an existing wheel can be used.
We received a typical request for a V-groove gate wheel. The buyer supplied a product photo, an approximate outside diameter and a total gate weight. The buyer wanted a quick unit price.
I could find visually similar wheels in our existing range, but I could not confirm one from the photo. I asked for:
- Wheel thickness
- Bearing bore
- Groove angle and depth
- Track cross-section
- Number of load-bearing wheels
- Shaft and bracket dimensions
- Outdoor conditions
- Expected order quantity
The later track information showed why the first comparison was risky. One existing wheel had a similar outside diameter, but its groove would contact the supplied track in a different position.
We then reviewed three options:
- Check another existing mould with a closer groove
- Assess whether secondary machining could produce the required profile
- Assess new tooling if the annual demand supported it
The useful result was not a sales claim. The extra information stopped both sides from sampling a wheel that looked correct but did not match the track.
This case reflects a pattern I see in export enquiries. Clear drawings and application details usually reduce revision rounds more effectively than a long email about price.
What Should Buyers Test Before Bulk Production?
Buyers should test the complete wheel, bearing, shaft, bracket and track assembly before bulk production. A loose wheel sample can confirm dimensions and rotation, but it cannot confirm gate performance.
Our factory can check production-related items, including:
- Wheel diameter and width
- Groove angle and dimensions
- Bearing position
- Bore and shaft fit
- Wheel concentricity
- Visible moulding or coating defects
- Bracket dimensions
- Basic rotation
- Packaging and labels
The buyer should complete the application test under defined conditions.
| Test area | Questions for sample approval |
|---|---|
| Fit | Does the wheel fit the shaft, bracket and track? |
| Contact | Does the groove contact the approved track correctly? |
| Movement | Does the gate travel through its full path without binding? |
| Load | Does the complete assembly pass the buyer’s specified load? |
| Noise | Is the sound acceptable at the required speed and load? |
| Alignment | Does the wheel remain centred on the track? |
| Environment | Do seals, materials and finishes suit the real conditions? |
| Endurance | Does the sample pass the required cycle test? |
| Supply | Does the sample match the signed drawing and specification? |
Ask the technical team to define the test load, speed, travel, cycle count, temperature, contamination and acceptance limit. Without those inputs, the words “long service life” have no measurable meaning.
How Should Buyers Assess a Sliding Gate Wheel Manufacturer?
Buyers should assess a sliding gate wheel manufacturer by process control, drawing review, material control, bearing assembly, machining accuracy, sample support and repeat-order consistency.
A cheap first sample does not show whether the supplier can repeat the same product for the next container order.
I suggest that company buyers ask these questions:
| Supplier area | Question to ask | Why it affects purchasing |
|---|---|---|
| Product scope | Does the supplier make wheels, shafts and brackets? | Reduces gaps between component suppliers |
| Mould library | Can an existing mould match the project? | May reduce time and tooling cost |
| Material control | Is the material grade recorded and controlled? | Reduces batch changes |
| Bearing assembly | How are bearing source, fit and rotation checked? | Affects consistency and movement |
| Moulding or coating | How does the supplier control centring and coverage? | Affects wobble and wheel life |
| Machining | Which groove and shaft tolerances can the supplier hold? | Affects track and bracket fit |
| Stamping | Can the bracket thickness and position stay consistent? | Affects alignment and strength |
| Inspection | Which dimensions and functions appear on the report? | Creates a clear approval standard |
| Change control | Must the buyer approve material or process changes? | Protects repeat orders |
| Packaging | How are machined grooves and finishes protected? | Reduces transport damage |
Our production covers bearing assembly, injection moulding, plastic and rubber coating, stamping and hardware processing. This helps us review the wheel and related hardware together. It does not remove the buyer’s duty to approve the complete gate design and application test.
An ISO-based quality process can support material records, inspection and change control. Buyers should still audit the project-specific drawing, sample and test plan.
What Should an OEM Quotation Include?
An OEM quotation should define the product, material, bearing, tooling, quantity, inspection, packaging, price basis and delivery terms. A unit price without a controlled specification is hard to compare.
Send the following information with your request:
| Quotation item | Required detail |
|---|---|
| Application | Sliding gate, industrial door or other system |
| Gate | Size, weight and wheel arrangement |
| Wheel | Diameter, width, groove and material |
| Track | Profile, angle, dimensions and material |
| Bearing | Model, quantity, seal and quality requirement |
| Shaft | Dimensions, material, tolerance and retention |
| Bracket | Drawing, thickness and surface finish |
| Environment | Indoor, outdoor, dust, rain, salt and temperature |
| Test | Load, speed, cycles and acceptance criteria |
| Quantity | Samples, first order and annual demand |
| Tooling | New mould needs, ownership and refund terms |
| Quality | Drawing report, material record and inspection level |
| Packaging | Neutral or private label, barcode and carton marks |
| Commercial | Currency, trade term and required delivery date |
The quotation should also state whether the price covers a loose wheel, a wheel with bearing, a shafted roller or a complete bracket assembly. These products can look similar in a small image but have very different production content.
For a project review, use our contact page and send the drawing or sample details with your target quantity.
What Is the Final B2B Selection Checklist?
A B2B buyer should approve the sliding roller as one part of a complete gate system and one part of a repeatable supply specification.
Use this order:
- Define the gate weight and size.
- Confirm the number and position of load-bearing wheels.
- Record speed, travel and usage frequency.
- Measure the V-track cross-section.
- Confirm installation space, shaft and bracket.
- Match the groove with the track.
- Compare material trade-offs.
- Select the bearing and closure.
- Compare an existing mould, secondary machining and new tooling.
- Produce a controlled sample.
- Test the complete assembly in the real application.
- Sign the drawing, material and quality specification.
- Confirm packaging, batch control and repeat-order requirements.
Do not ask only:
What is the cheapest V-groove wheel in this diameter?
Ask:
Which wheel, bearing, shaft, bracket and track combination can meet our approved test and remain consistent in repeat production?
That question supports a better B2B purchasing decision.
Do You Need a Sliding Roller or V-Track Roller for an OEM Project?
Send us your drawing, physical sample, V-track profile, gate information and order plan. We will first check whether an existing product or mould can match the requirement.
If an existing option does not fit, we can review:
- Secondary machining
- A different bearing structure
- Plastic or rubber coating
- A new V-groove profile
- A custom shaft
- A stamped bracket or housing
- A complete roller assembly
Our production review covers manufacturing feasibility, material selection, dimensions and bulk consistency. Your qualified gate-system team should approve the final structure, load and site performance.
View Sliding Rollers with Bearing
Review Our OEM and ODM Process
Send Your Sliding Gate Wheel Requirements
